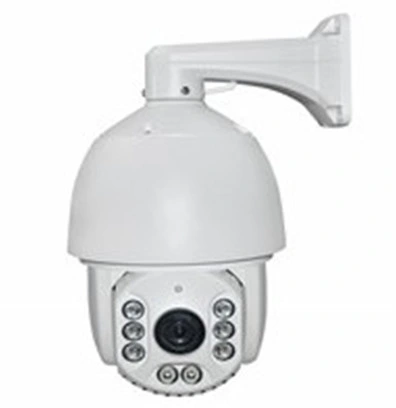

Waterproof H.264 27X Zoom High speed outdoor dome PTZ IP Camera (IP-380H)
Feature:
High speed Dome PTZ camera (9'' housing for choosing)
Explosion-proof IP66; Day/Nigh 12PCS IR LED lights, Distance 80/100M
Horizontal resolution 800TVL
H. 264 compression
Focus: AUTO/Manual
Iris: AUTO/Manual
Zoom: F=4.1- 73.8mm
256 Presets and 1 cruise scanning section
Continuous 320° Horizontal Rotation and 90° Vertical Auto Flip
IR LED power adjusted automatically according to the zoom, avoid the flashlight effect.
If there is any question, please don't hesitate to contact us. We will try our best to cooperate with you.
Feature:
High speed Dome PTZ camera (9'' housing for choosing)
Explosion-proof IP66; Day/Nigh 12PCS IR LED lights, Distance 80/100M
Horizontal resolution 800TVL
H. 264 compression
Focus: AUTO/Manual
Iris: AUTO/Manual
Zoom: F=4.1- 73.8mm
256 Presets and 1 cruise scanning section
Continuous 320° Horizontal Rotation and 90° Vertical Auto Flip
IR LED power adjusted automatically according to the zoom, avoid the flashlight effect.
| Serial No. | Type | Specification |
| CCD module | Image sensor | 1/4 SONY CCD 800TVL |
| Lens | Zoom: 3.2-86.4mm 27x Optical Zoom | |
| Min. illumination | 0.5LUX / F1.2 | |
| Day/night | IR | 8pcs IR Led lights, Distance 80/100M |
| Video | Compressed format | H. 264 |
| Resolution | D1(720× 576) Half-D1(576× 354) CIF(352× 288) QCIF(176× 144) | |
| Max frames per second | 30fps@D1(NTSC) | |
| 25fps@D1(PAL) | ||
| Audio | Audio encoding format | G. 711 ADPCM |
| Microphone | Connect to pickup | |
| Software | WEB IE Browser | IE 6.0 or higher |
| Security | Password protection, 3 levels visitors | |
| Client | Display at most 5X6 pictures at a time/Multiple pages switching/Timed record | |
| Security | Password Protection: Configured by the Administrator | |
| Hardware | CPU | 32 Bit ARM9 RISC Core |
| Operate System | Embedded Linux system | |
| DDR | 256M | |
| Flash memory | 32M | |
| Internet | Net port | 10/100M Ethernet port (RJ45) |
| Net protocol | TCP/IP. UDP. HTTP. DHCP. PPPoE. FTP. UPNP. DDNS. SMTP. NTP. TFTP | |
| Outside Port | GPIO port | 1ch input Alarm, 1ch output Alarm |
| SD Card | Support (option) | |
| Video port | 1ch output video. (Multiple video format NTSC/PAL) | |
| Audio port | 1ch input audio | |
| Function | OSD | support |
| DDNS | Have professional Viewipcam. net and many other international famous server for your choosing | |
| User management | Administrator, common user, anonymous user. (Max. viewer: 10) | |
| video adjustment | brightness, contrast and saturation | |
| Bandwidth | By adjusting the compression, frame and resolution, it can be used to different bandwidth | |
| Motion detection | Motion detection alarm can send pictures to the appointed Email or send AV video to appointed FTP. You can setup the alarm time and area as you like | |
| Patrol | 5( programmable) | |
| Preset | 255 | |
| Pan Operation Speed | 0.1-250 degrees/s | |
| Pan Patrol Speed | 320 degrees/s | |
| Tilt Operation Speed | 0.1-90 degrees/s | |
| Tilt Patrol Speed | 90/90 degrees/s | |
| Pan Rotation Angle | 320 degrees continuously | |
| General | Power supply | Input AC 100-240 V 50/60Hz |
| Output DC12V 5A | ||
| Work Environment | Temperature: -30° C- 60° C Humidity: 0% - 80%RHG(Waterproof) | |
| Power | 8W |
