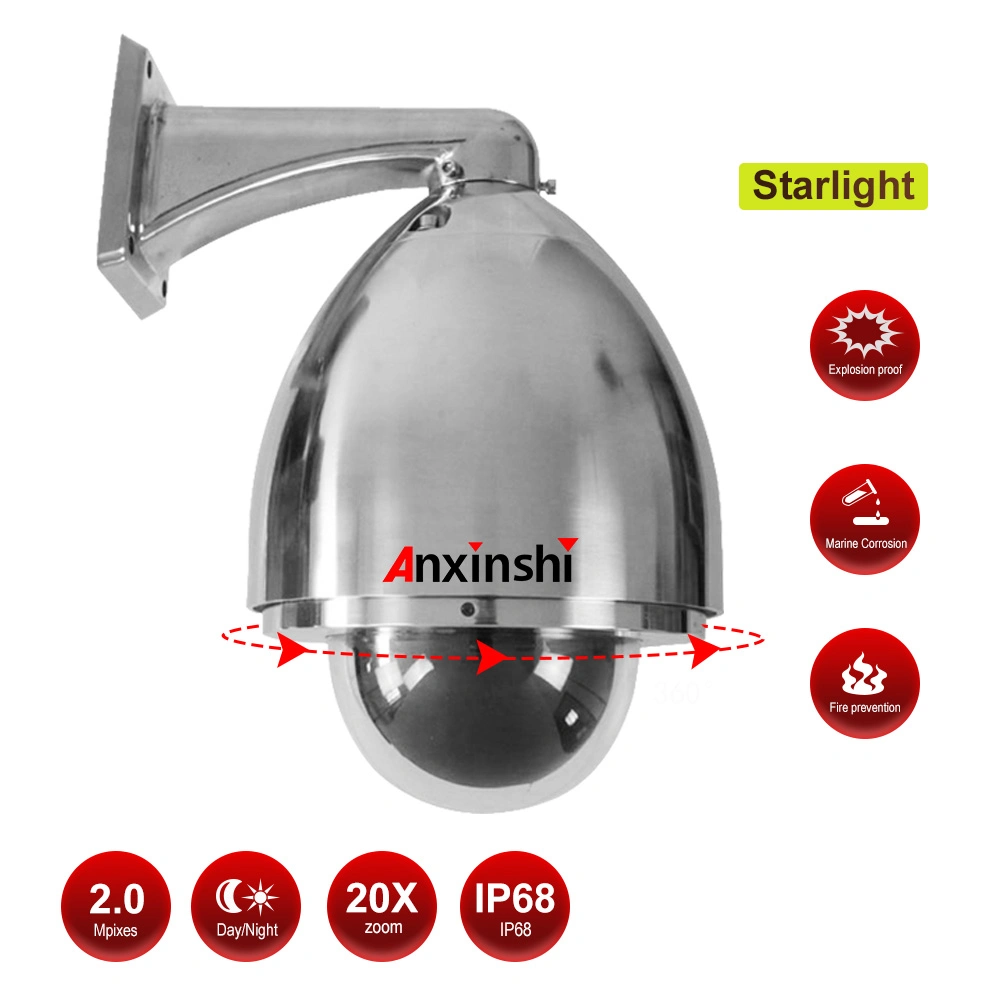

| 2.0Mpixes starlight 20X zoom WDR Explosion proof Marine Corrosion Rust Protection Stainliess steel PTZ waterproof weatherproof IP68 camera | ||
| Technical | ||
| Camera: 1.1/2.5" 2.0M Pixel HI3516E + IMX307 2.20X optical zoom, auto focus 3.2.0MP available 4.True Day/Night, 3D DNR, Digital WDR 5.Backlight compensation, and auto gain control (AGC) Network Features: 1.Main Stream:1920*1080 (1080P) 2.Support the P2P or Android, IOS 3.Support Onvif2.4 4.H.265 main profile/H.264 main profile & M-JPEG Dual-stream Encoding ,Three Simultaneous video streams 5.Standard SDK,CGI,easily to be integrated with other digital systems 6.Support a variety of network protocol such as TCP/IP/ HTTP/ NTP/ IGMP/ DHCP/ UDP/ SMTP/ RTP/ RTSP/ ARP /DDNS /DNS/ P2P Dome Features: 1.Corrosion Proof and Marine Corrosion stainless steel-by SUS316L material 2. NEW 32 bit processor, with soft ID, more storage space, higher speed, better performance, lower consumption 3. Highest ESD protection against lightning and power surges. 4. 360° continued rotation, manual pan speed 0~300°,manual tilt speed 0~120° 5. Preset speed 400°/S, Preset Accuracy ±0.10° 6. Tilt range:0~90°(Auto flip) 7. Explosion-proof ,Marine Corrosion ,Rust Protection Stainliess steel PTZ , waterproof , weatherproof , IP68 | ||
| Form parameters | ||
| Mode | Name and Description | 2.0Mpixes starlight 20X zoom WDR Explosion proof Marine Corrosion Rust Protection Stainliess steel PTZ waterproof weatherproof IP68 camera |
| ASIH609L-020-20 | ||
| Camera | Image Sensor | 1/2.5" 5.0M Pixel HI3516E + IMX307 |
| Effective Pixels | 2.0 Mpixes | |
| Min. Illumination | Color:0.1Lux@(F1.6, AGC ON) B/W: 0.01Lux@(F1.6, AGC ON) | |
| Zoom | 20X , f=4.7mm~94mm, D/N( ICR-Cut) ,F1.6~F3.0 | |
| Day/Night | Day / Night / External control(IR Cut Filter) | |
| SNR | ≥46dB(AGC OFF) | |
| WDR | Digital WDR,≥70dB | |
| AGC | Auto / Manual | |
| White balance | Auto/Manual /ATW/Indoor/Daylight lamp/Sodium lamp | |
| Digital noise Reduction | DNR,3DNR | |
| Shutter speed | 1/2 - 1/20,000s | |
| Network | Video Compression | H.265 Main Profile/H.264 Main Profile/M-JPEG |
| Streams | Dual streams | |
| Frame Rate | Main stream: | |
| 2592*1944, 1-15fps; 2592*1520, 1-16fps; 2304*1296, 1-25(30)fps; 1920*1080, 1-25(30)fps; 1280*960, 1-25(30)fps; 1280*720, 1-25(30)fps | ||
| Sub-stream: | ||
| 640*480, 1-25(30)fps; 480*360, 1-25(30)fps; 352*288, 1-25(30)fps; 320*240, 1-25(30)fps; 176*144, 1-25(30)fps; | ||
| MJPEG: | ||
| 1920x1080, 1280x960, 1280x720, Close | ||
| Bitrate | CBR/VBR, bitrate:32Kbps~10Mbps variable | |
| Audio Compression | G711,PCM | |
| P2P | Android,IOS | |
| Protocols | TCP/IP/ HTTP/ NTP/ IGMP/ DHCP/ UDP/ SMTP/ RTP/ RTSP/ ARP /DDNS /DNS/ P2P | |
| Motion detect | Support | |
| Privacy Zone Masking | Support | |
| Onvif | Onvif 2.4 | |
| Network | 10/100M Base-TX Ethernet, RJ45 Connector | |
| Mini SD Card | Up to 128GB(Optional) | |
| Dome Features | CPU Type | 32 bit ARM CPU |
| Address | 0~255(soft address and hard address) | |
| Pan Range | 360° continued rotation | |
| Tilt Range | 0~90°(Auto Flip) | |
| Manual pan speed | 0.1~300°/S | |
| Manual tilt speed | 0.1-120º/S | |
| Preset speed | 400°/S | |
| Actual preset Accuracy | ±0.10° | |
| Preset points | 128 | |
| Other function | 6Tour, Intelligent Three dimensional Scan, 3Pattern group ,Operation recall, Manual continued Auto Scan | |
| Intelligent power off real time memory | automatic save functions setting ,automatic wake up tour function | |
| General | Work temperature | External-30ºC~65ºC |
| Work Humidity | 0%~90% (Non condensing) | |
| Power | AC24V±10%;2.5A | |
| Consumption | 24W | |
